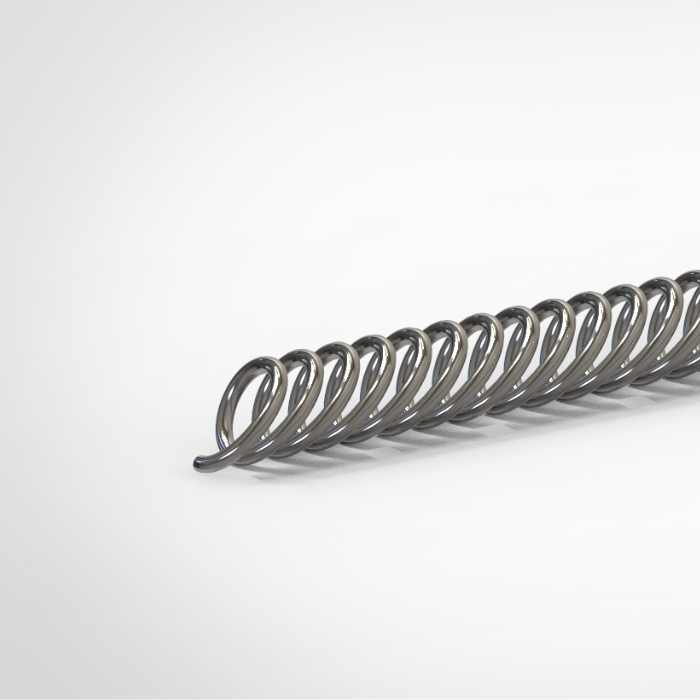

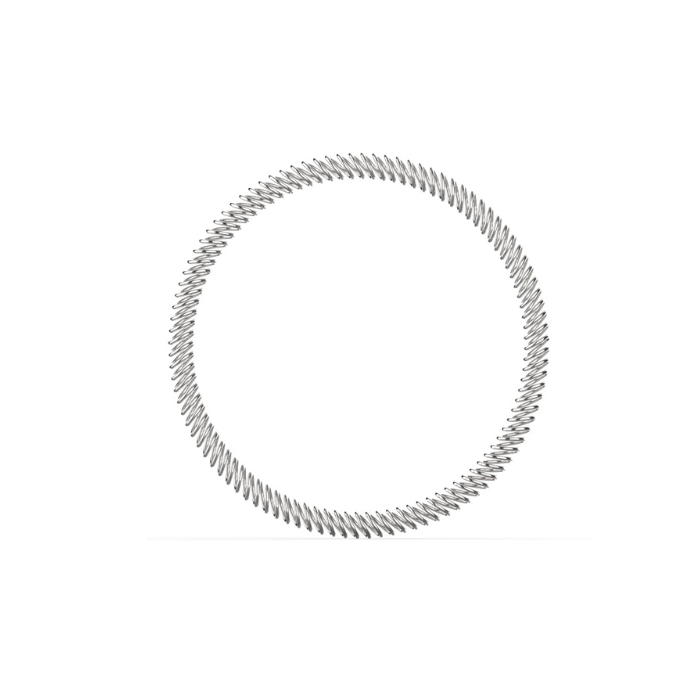

Canted Coil Spring

Canted Coil Spring has a very unique oval shape cross section that allows the spring to have a very flat spring force curve in a specific working deflection range.

The design of the canted coil spring helps to compensate surface irregularities and dimensional variations.
The spring loads can also be customized by adjusting wire diameter, coil height, coil width and spacing.

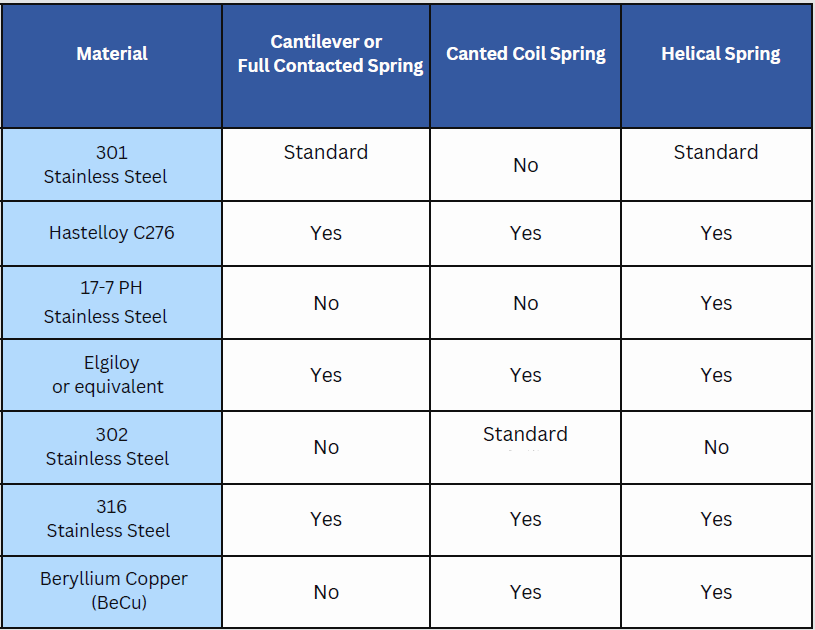

Avaliable material:302 Stainless Steel, Hastelloy C276, Elgiloy or equivalent, 316 Stainless Steel, Beryllium Copper (BeCu)

Application Range

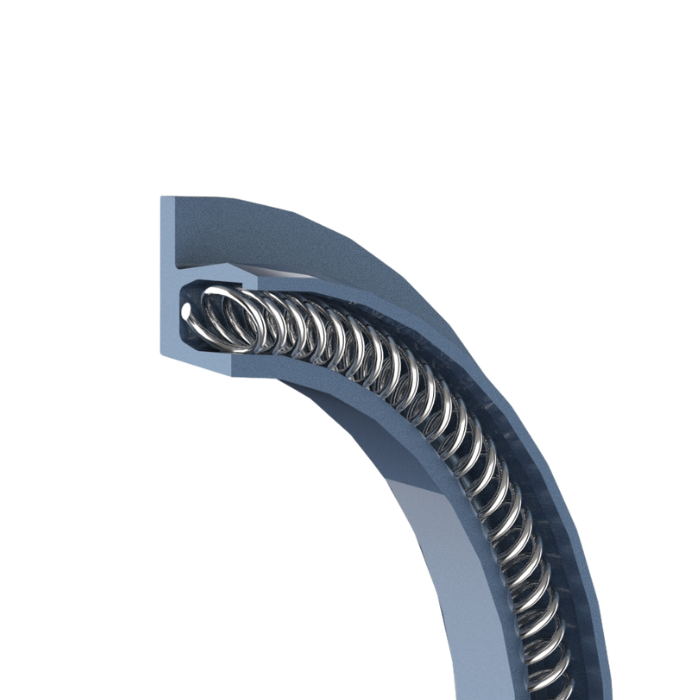

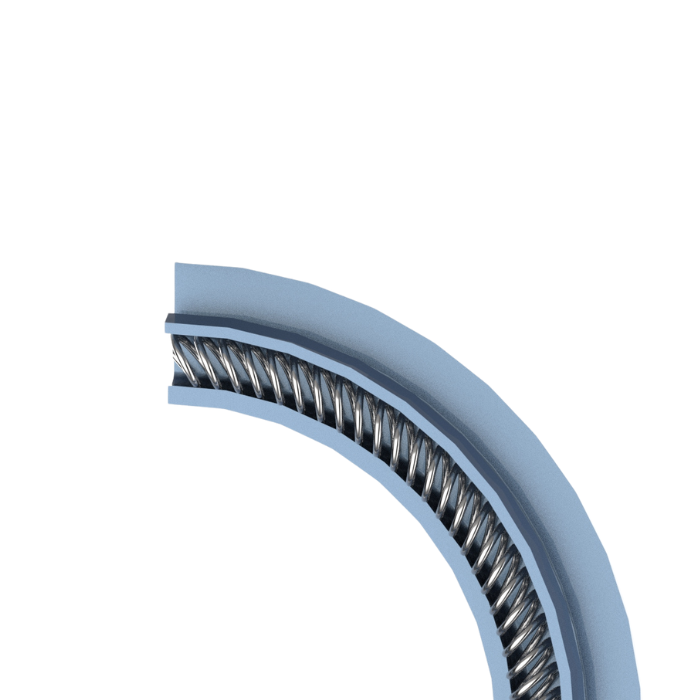

Spring energized seals (spring energizer): typically used in dynamic with light to medium load application; friction sensitive applications.
Suitable for wide tolerance and glands.
Electricity conductivity purposes
EMI shielding function
Mechanical fastening: locking, latching, and holding.

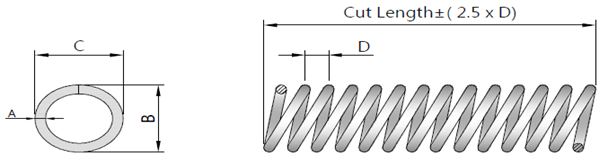

Item No.		Metrics(mm)				Inches(")
Item No.		A	B	C	D	A	B	C	D
SS-PC132	L	0.08	0.64	0.69	0.18	0.003	0.025	0.027	0.007
SS-PC132	M	0.09	0.64	0.69	0.20	0.0035	0.025	0.027	0.008
SS-PC132	MH	0.11	0.66	0.71	0.23	0.0045	0.026	0.028	0.009
SS-PC132	H	0.13	0.66	0.71	0.25	0.005	0.026	0.028	0.010
SS-PC000	L	0.13	1.40	1.52	0.33	0.005	0.055	0.060	0.013
SS-PC000	LM	0.15	1.40	1.52	0.36	0.006	0.055	0.060	0.014
SS-PC000	M	0.18	1.30	1.42	0.41	0.007	0.051	0.056	0.016
SS-PC000	H	0.20	1.22	1.32	0.46	0.008	0.048	0.052	0.018
SS-PC100	L	0.20	2.18	2.39	0.51	0.008	0.086	0.094	0.020
SS-PC100	M	0.28	2.11	2.29	0.58	0.011	0.083	0.090	0.023
SS-PC100	H	0.36	2.06	2.26	0.71	0.014	0.081	0.089	0.028
SS-PC200	L	0.28	2.92	3.15	0.69	0.011	0.115	0.124	0.027
SS-PC200	M	0.36	2.90	3.10	0.69	0.014	0.114	0.122	0.027
SS-PC200	H	0.41	2.87	3.10	0.79	0.016	0.113	0.122	0.031
SS-PC300	L	0.41	4.14	4.50	0.91	0.016	0.163	0.177	0.036
SS-PC300	M	0.51	4.14	4.47	1.14	0.020	0.163	0.176	0.045
SS-PC300	H	0.66	4.04	4.37	1.42	0.026	0.159	0.172	0.056
SS-PC400	L	0.51	5.46	6.05	1.22	0.020	0.215	0.238	0.048
SS-PC400	M	0.66	5.46	5.99	1.50	0.026	0.215	0.236	0.059
SS-PC400	H	0.79	5.46	5.84	1.68	0.031	0.215	0.230	0.066
SS-PC500	L	0.66	8.26	9.19	1.50	0.026	0.325	0.362	0.059
SS-PC500	M	0.79	8.26	9.12	1.73	0.031	0.325	0.359	0.068
SS-PC500	H	1.04	8.26	8.84	2.21	0.041	0.325	0.348	0.087

Meterial	‧ 301SS-Standard	Plating	‧ Sliver
	‧ 316SS		‧ Gold
	‧ 17/7PH		‧ Nickel
	‧ Elgiloy		‧ Tin
