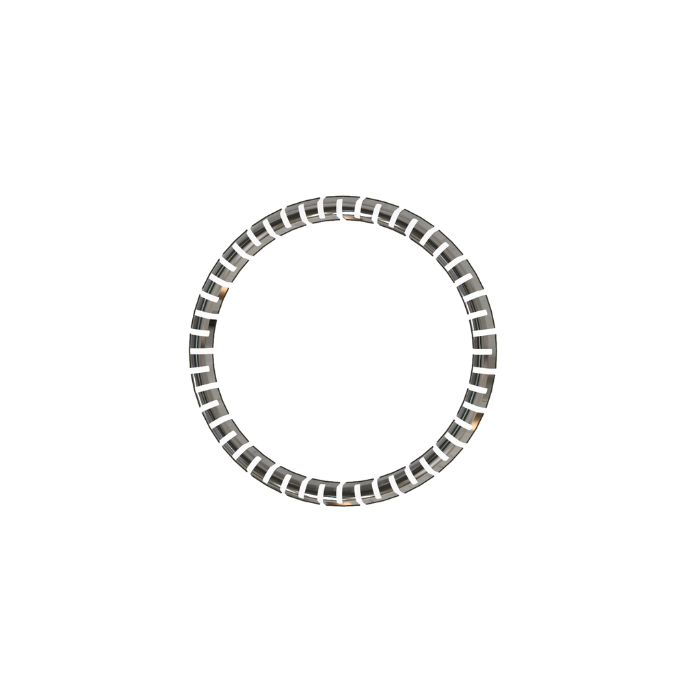

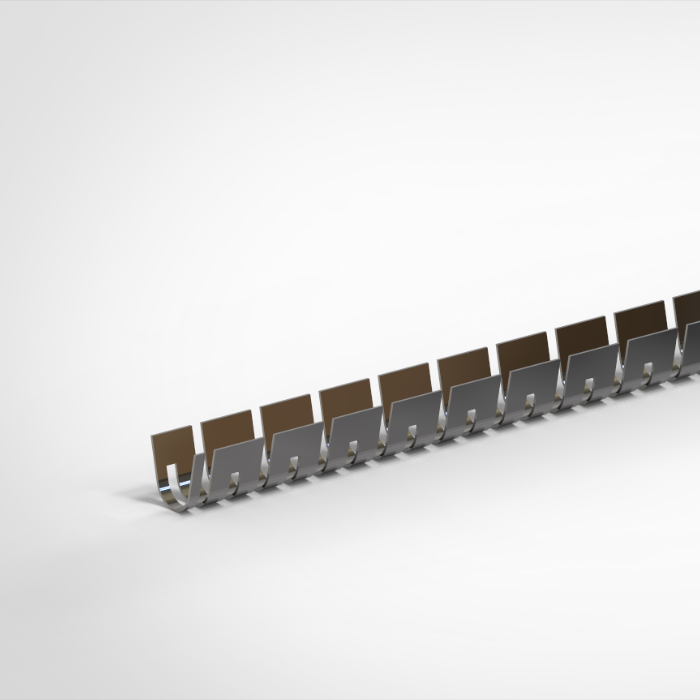

Cantilever spring is V shaped pattern design spring that provide equal linear spring load over a large deflection range.

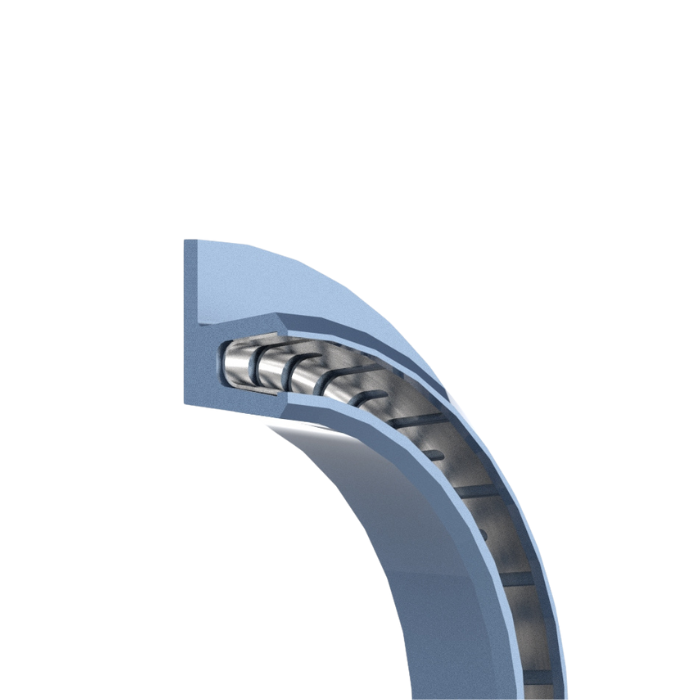

The V shape design stretches out the seal during operation and provide energy to the jacket that helps to seal tightly.
The length, sizes, material can be customized based on application.

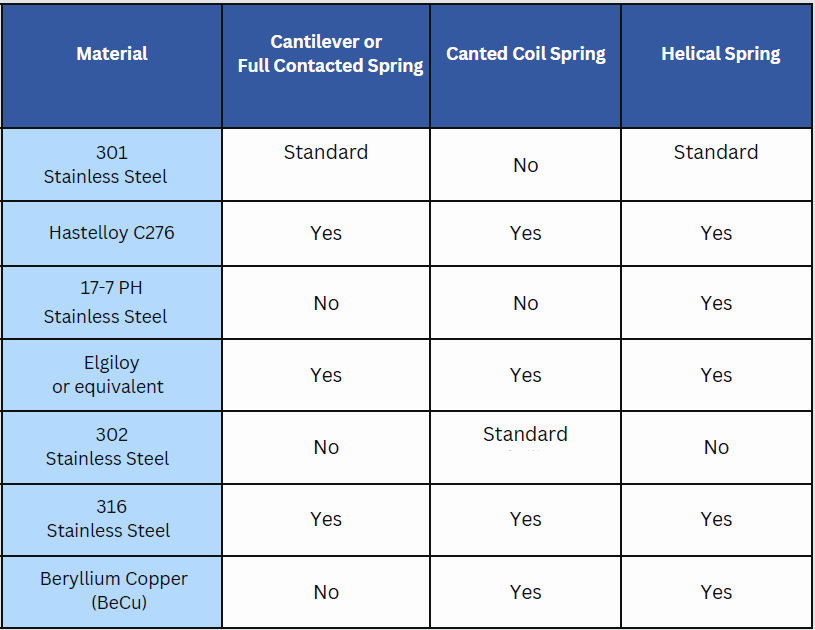

Avaliable material: 301 Stainless Steel, Hastelloy C276, Elgiloy or equivalent, 316 Stainless Steel.

Application Range

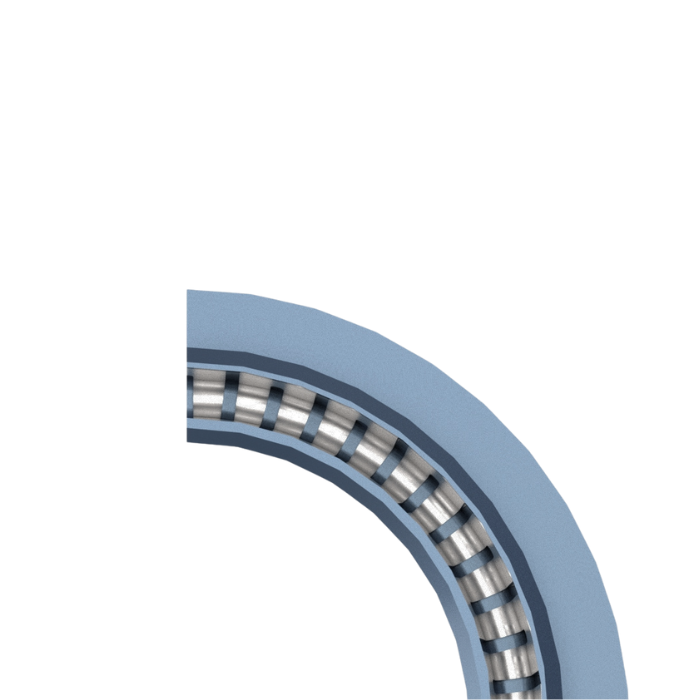

Spring energized seals: under static or low speed and is the preferred choice for reciprocating applications.
It is a great choice for medium load application
Spring energized seals with cantilever springs are commonly used in hydraulic cylinders, pumps and compressors.
Suitable for wide tolerance and misaligned glands.

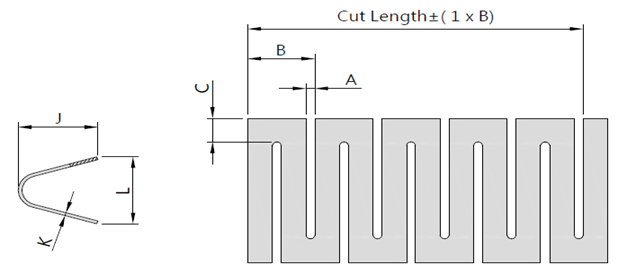

Item No.	Metrics(mm)						Inches(")
Item No.	A	B	C	L	J	K	A	B	C	L	J	K
SS-PV000	0.50	1.90	0.50	1.20	1.30	0.08	0.020	0.075	0.020	0.047	0.051	0.003
SS-PV100	0.50	2.40	0.50	2.00	2.00	0.12	0.020	0.094	0.020	0.079	0.079	0.005
SS-PV200	0.50	2.90	1.30	2.80	2.80	0.15	0.020	0.114	0.051	0.110	0.110	0.006
SS-PV300	0.50	3.80	1.60	4.50	4.30	0.20	0.020	0.150	0.063	0.177	0.169	0.008
SS-PV400	0.50	5.00	2.00	6.50	6.00	0.25	0.020	0.197	0.079	0.256	0.236	0.010
SS-PV500	0.90	6.90	2.40	9.00	8.50	0.25	0.035	0.272	0.094	0.354	0.335	0.010
SS-PV600	0.90	7.60	2.40	12.50	11.50	0.50	0.035	0.299	0.094	0.492	0.453	0.020

Meterial	‧ 301SS-Standard
	‧ 316SS
	‧ Hastelloy C276

Item No.	Metrics(mm)						Inches(")
Item No.	A	B	C	L	J	K	A	B	C	L	J	K
SS-PV000	0.50	1.90	0.50	1.20	1.30	0.08	0.020	0.075	0.020	0.047	0.051	0.003
SS-PV100	0.25	2.03	0.76	1.80	2.03	0.12	0.010	0.080	0.030	0.071	0.080	0.005
SS-PV200	0.28	2.54	1.02	2.57	2.67	0.15	0.011	0.100	0.040	0.101	0.105	0.006
SS-PV300	0.51	3.81	1.40	4.39	4.06	0.20	0.020	0.150	0.055	0.173	0.160	0.008
SS-PV400	0.64	5.08	1.91	6.22	5.97	0.25	0.025	0.200	0.075	0.245	0.235	0.010
SS-PV500	0.89	5.08	3.81	8.08	9.14	0.50	0.035	0.200	0.150	0.318	0.360	0.020

Meterial

‧ Elgiloy
